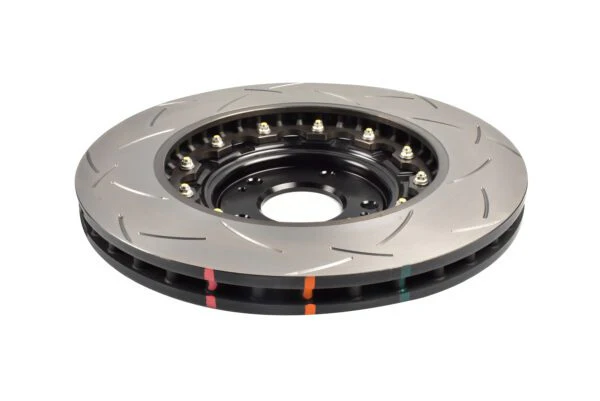

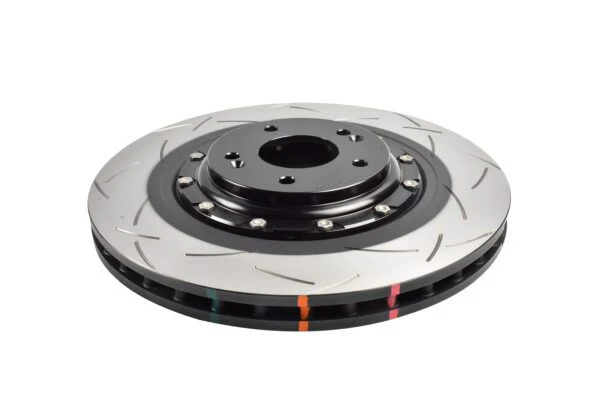

Front 5000 Series T3 Brake Rotor - Elantra N / Kona N

Features

1. Two Piece Design Hat and rings sold as complete assemblies and as individual components, for more economical replacement options.

   ---

2. Surface Design Symmetrical slots facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel. *

   ---

3. DBA Aluma-Lite Aluma-lite center hat / bell made from extra lightweight 6061 T6 aircraft aluminum, reducing the unsprung weight for better vehicle handling and minimizing heat transfer to the wheel hubs.

   ---

4. Anti Rust Painted non-friction areas to prevent rust and enhance appearance.

   ---

5. Bi-Directional Use Symmetrical slotting and/or drilling for universal left/right use.

   ---

6. Thermal Stability Profiling (TSP) Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability. Centre split core castings for increased heat transfer and thermal efficiency.

   ---

7. Thermal Efficiency Centre-split core castings for increased heat dissipation and thermal efficiency.*

   ---

8. CBN Cubic Boron Nitride machine turned finish, minimizing disc thickness variation and the potential for pad “knock” and resulting premature wear.

   ---

9. Thermographic Heat Paint (TGHP) Paint markings change color at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue.

   ---

10. High Carbon Alloyed Iron Formulation allows for optimal interaction with DBA’s thermal stability profiling. Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods.

    ---

11. Kangaroo Paw Unique Kangaroo Paw vein design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.*

    ---

12. NAS Bolts & Nuts National Aerospace Standards (NAS) bolts and crimp nuts for maximum strength at minimal weight.

1. Technical Specs

   Product SubVariant	T3
   Axle	Front
   Vane Design	Kangaroo Paw
   Outer diameter[mm]	360
   Height [mm]	52.5
   Brake Disc Thickness [mm]	30
   Minimum Thickness [mm]	28
   Centering Diameter [mm]	69
   Number of Holes	5
   Weight [kg]	10.68
   Pitch Circle Ø	153.3
   Uom	Each
   Surface Design	Slotted




   Package Specs

   No. of items in box	1
   Packaged Weight (kg)	10.68




   General Specs

   SKU	DBA53148BLKS

   Barcode	9316391480583
   Short Description	5000 Series T3 Brake Rotor
   Brand	DBA
   Product Segment	Rotors & Drums
   Product Category	Brake Rotor
   Product Variant	5000 Series
   Warranty	12 months/ 20,000km/ 12,000 miles
